V-200F

Product Features

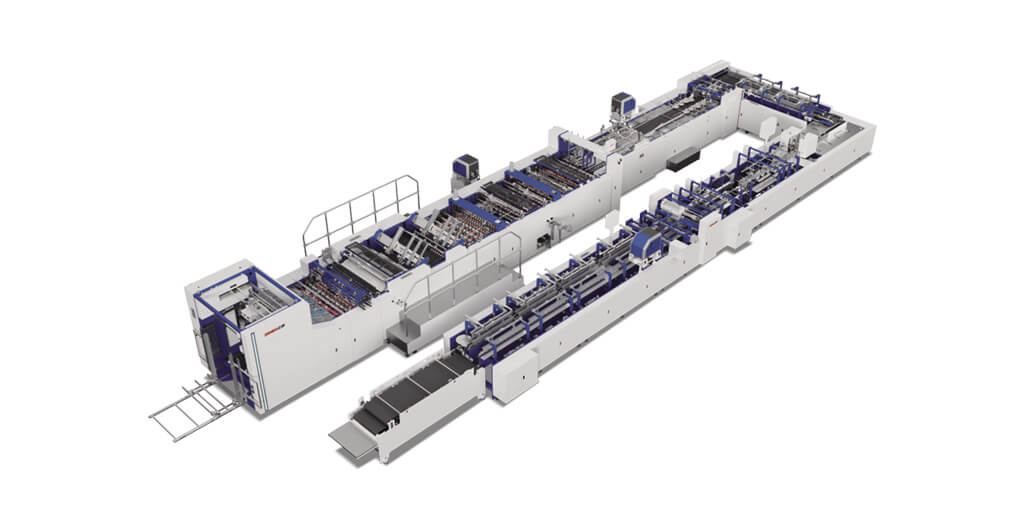

Officially launched globally in 2026, the V200F is our world-first intelligent premium paper bag making machine. Fully fitted with a complete servo control system, it enables ultra-efficient setup and rapid size changeovers. The machine innovatively integrates an in-line flat rope bonding/attaching/pasting process to form a fully automated, highly flexible production line. It is compatible with diverse cord materials, including polyester, polyester-cotton blend, pure cotton and paper cords, fully accommodating the production of various rope-equipped paper bags and delivering exceptional flexible manufacturing capabilities.

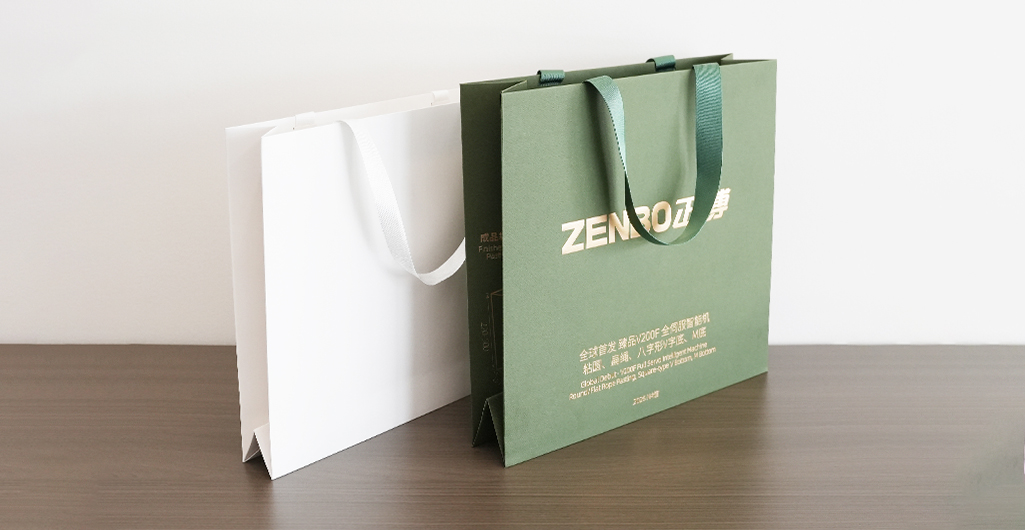

It exclusively supports luxury-oriented square-type V-bottom and standard V-bottom forming designs, with exquisite craftsmanship that fully complies with global manufacturing standards for high-end premium paper bag bottoms.
Optional functional modules such as ribbon bow attachment and bottom cardboard insertion are available to meet customized production demands for a wide range of upscale luxury paper bags. It effectively helps customers cut operational costs, boost production efficiency, reduce labor reliance, upgrade finished product quality, and ensure stable and timely order fulfillment.
As a technologically innovative benchmark machine for the high-end luxury paper bag industry, the V200F balances stable mass-production capacity and superior product quality. It empowers packaging enterprises to achieve large-scale, high-quality mass production of premium luxury paper bags.

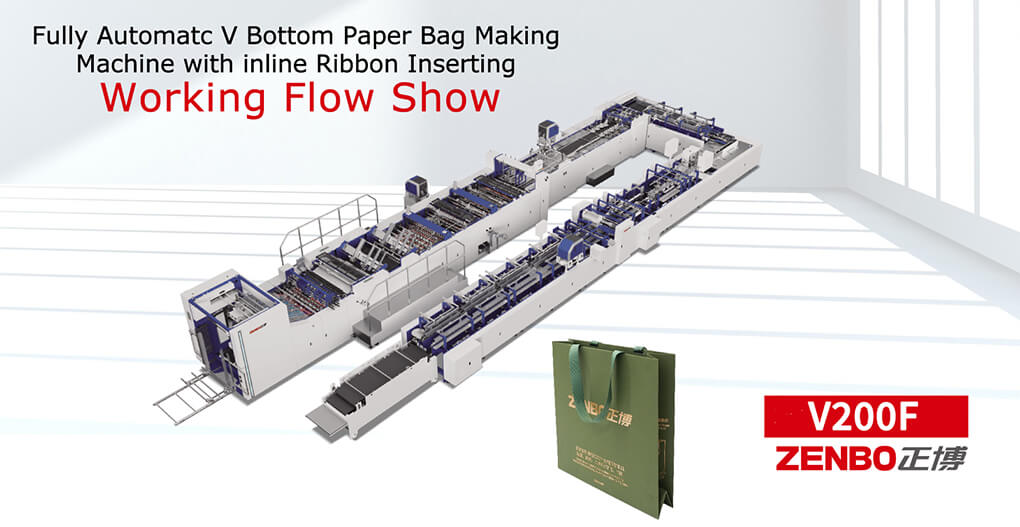

(▲You can click the picture see the machine work flow in youtube)

Paper bag making process

equipment to make v bottom paper bags

Technical parameters

Sheet Size And Top Card Position
paper bag making machine for v bottom bags

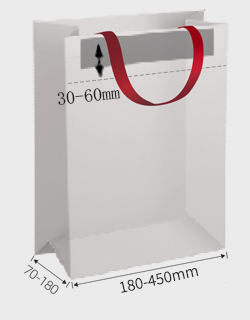

Bag Size
v bottom paper bag making machine
Top Reinforce Cardboard Size
V bottom bag top card size
Ribbon Inserting Size
Ribbon Inserting Size
Standard Top Folding Joint Type : Insert Pasting
paper bag machine v bottom inline

The glue position is on the big side (bag surface)

Option:4pcs Top Reinforce Cardboard Function
paper bags machine v bottom

Automatic Bottom Cardboard Inserting

Technical data
No. V200F
Max.Sheet(L*W) 1200*600mm
Min.Sheet(L*W) 540*320mm
Sheet Weight 170-300gsm
Top Folding Depth 30-60mm
Bag Tube Length 280-570mm
Bottom Width 80-180mm
Bag Width 180-450mm
Top Cardboard Paper Weight 250-500gsm
Top Cardboard Paper Length 160-430mm
Top Cardboard Paper Width 25-50mm
Ribbon width 18-32mm
Ribbon Hole Length 21-35mm
Inner Bonding Length of Ribbon 25-55mm
Ribbon Thickness / Hole width 0.5-1.5/≥3mm
Ribbon Total Length 300-610mm
Hole Pitch 60-220mm

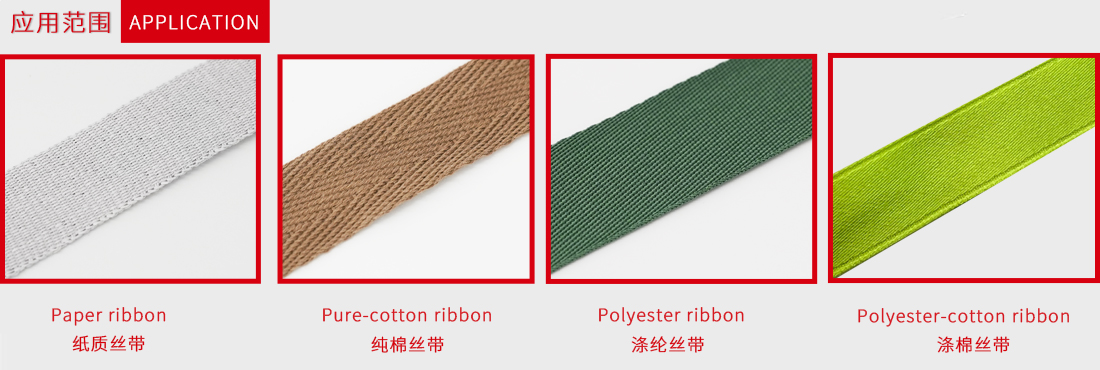

Ribbon Material polyester/ polyester-cotton / pure cotton / paper
Speed 30-50bags/min
Machine Size(L*W*H) 18500*5500*1800mm
Rated/Production Power 61/36.6KW
Power Supply 3P/380V/50HZ
Total Weight 23T
Glue Type Water Base Glue And Hot-melt Glue
Main parts brand

No. Name Origin Brand No. Name Origin Brand
1 Feeder China RUN 12 Bearing Germany BEM
2 Main motor China Fangda 13 Belt Japan NITTA
3 PLC Japan Mitsubishi 14 Synchronize belt Germany Continental
4 Frequency converter France Schneider 15 Air pump Germany Becker
5 Button Germany Eaton
Moller
16 Pneumatic component Taiwan/Japan Airtac/SMC
6 Electric relay Germany Weidmuller 17 Pilot valve Taiwan/Japan Airtac/SMC
7 Air switch Germany Eaton
 Moller
18 Photoelectric switch Korea/Germany Autonics/Sick
8 AC contactor Germany Eaton
 Moller
19 Hot melt glue system America Nordson
9 Wiring terminal Germany Weidmuller 20 Servo motor Taiwan Delta
10 Touch screen Taiwan Weinview 21 Servo gear box Japan Desboer
11 Switching Power Supply Taiwan MW
