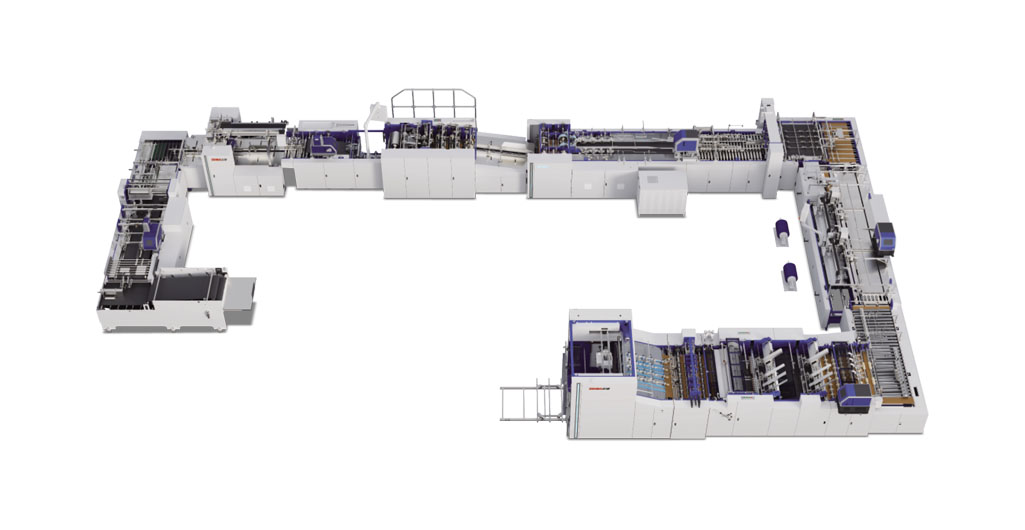

ZB 1200CT-450S
Fully Automatic Sheet-feeding Paper Bag Making Machine
This series of machines is a patented product independently developed by Zenbo (ZL200652588.2 : ZL 2015 1 0162894.9 ZL 2015 1 0044478.9 ) , which is a high-end product of CT series , represents a new height of the intelligent of sheet feeding paper bag making machine, This series is fully servo-driven , with memory intelligent size changing function(Operators can use mobile devices such as iPads to control the machine through WIFI),greatly reducing the technical requirements of size changing , and significantly save the time to change the size , increase efficiency and productivity for the user. Solving the problem of fully automatic production of small quantities of multiple varieties of paper bags , creating more market value for the user. After the servo size change , the equipment runs with higher stability , and the quality of paper bags is more reliable . This series is suitable for paper weight above 110gsm,with automatic top cardboard pasting , top folding ( insert pasting ) and bottom card inserting can customize 4-piece top cardboard function , which can meet the production needs of all kinds of luxury bags and high-quality boutique bags . CT series machines have served many global first-tier famous brands and are sold to Germany , Italy , the United States and other dveloped countries in Europe and the United States , as well as South America , Southeast Asia and other developing countries , with annual sales exceeding 100 sets.
If you are a manufacturer of luxury paper bags and boutique paper bags , have strict require -ments for the quality of paper bags , and you need to solve the problem of small batch and multi-species production , this series is a very ideal choice for you.

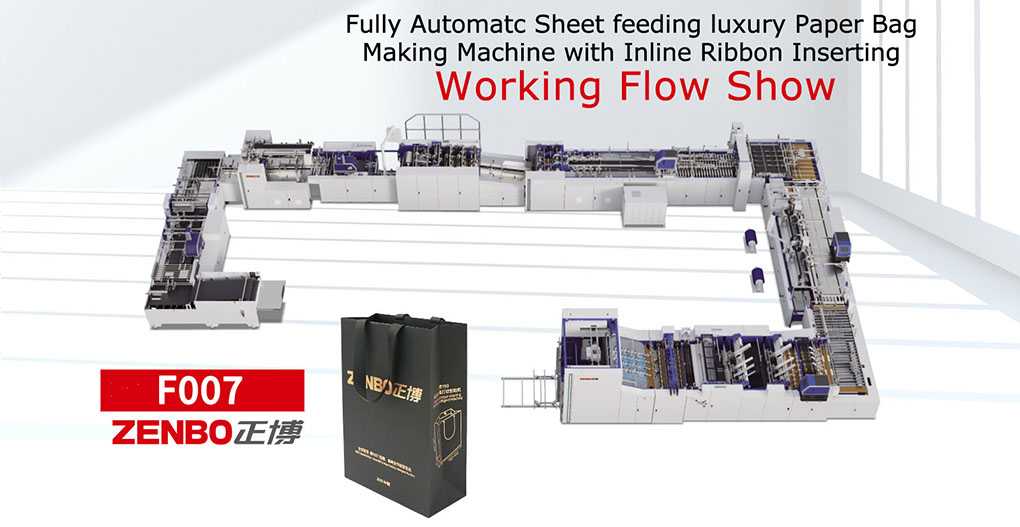

(▲You can click the picture see the machine work flow in youtube)
Ribbon Inserting Size
The glue position is on the big side (bag surface)
Automatic Top Folding
| No. | F007 |

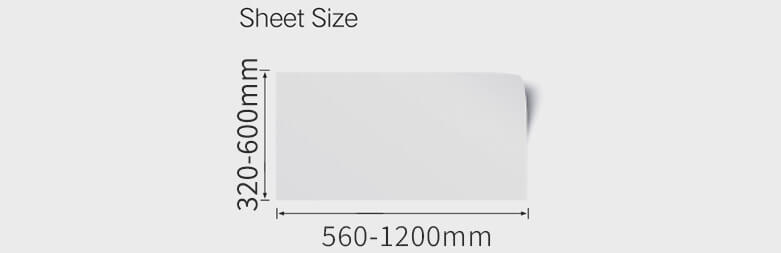

| Max.Sheet(L*W) | 1200*600mm |
| Min.Sheet(L*W) | 560*320mm |
| Sheet Weight | 170-300gsm |

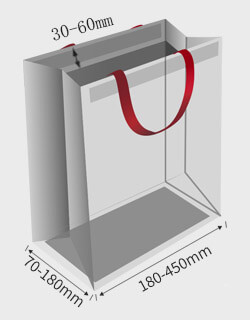

| Top Folding Depth | 30-60mm |
| Bag Tube Length | 280-570mm |
| Bottom Width | 70-180mm |
| Bag Width | 180-450mm |
| Top Cardboard Paper Weight | 250-500gsm |
| Top Cardboard Paper Length | 160-430mm |
| Top Cardboard Paper Width | 25-50mm |
| Ribbon width | 18-32mm |
| Ribbon Hole Length | 21-35mm |
| Inner Bonding Length of Ribbon | 25-55mm |
| Ribbon Thickness / Hole width | 0.5-1.5/≥3mm |
| Ribbon Total Length | 300-610mm |
| Hole Pitch | 60-220mm |
| Ribbon Material | polyester/ polyester-cotton / pure cotton / paper |
| Bottom Cardboard Weight | 250-400gsm |
| Bottom Cardboard Width | 64-174mm |
| Bottom Cardboard Length | 174-444mm |
| Speed | 30-50bags/min |
| Machine Size(L*W*H) | 18100*10200*1830mm |
| Rated/Production Power | 98.6/65.7KW |
| Power Supply | 3P/380V/50HZ |
| Total Weight | 30T |
| Glue Type | Water Base Glue And Hot-melt Glue |
| No. | Name | Origin | Brand | No. | Name | Origin | Brand |
| 1 | Feeder | China | RUN | 12 | Bearing | Germany | BEM |
| 2 | Main motor | China | Fangda | 13 | Belt | Japan | NITTA |
| 3 | PLC | Japan | Mitsubishi | 14 | Synchronize belt | Germany | Continental |
| 4 | Frequency converter | France | Schneider | 15 | Air pump | Germany | Becker |
| 5 | Button | Germany |
Eaton Moller |
16 | Pneumatic component | Taiwan/Japan | Airtac/SMC |
| 6 | Electric relay | Germany | Weidmuller | 17 | Pilot valve | Taiwan/Japan | Airtac/SMC |
| 7 | Air switch | Germany |
Eaton Moller |
18 | Photoelectric switch | Korea/Germany | Autonics/Sick |
| 8 | AC contactor | Germany |
Eaton Moller |
19 | Hot melt glue system | America | Nordson |
| 9 | Wiring terminal | Germany | Weidmuller | 20 | Servo motor | Taiwan | Delta |
| 10 | Touch screen | Taiwan | Weinview | 21 | Servo gear box | Japan | Desboer |
| 11 | Switching Power Supply | Taiwan | MW |
